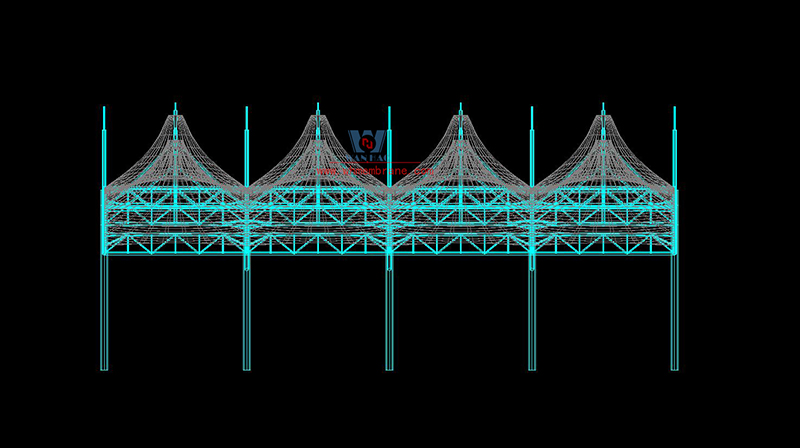

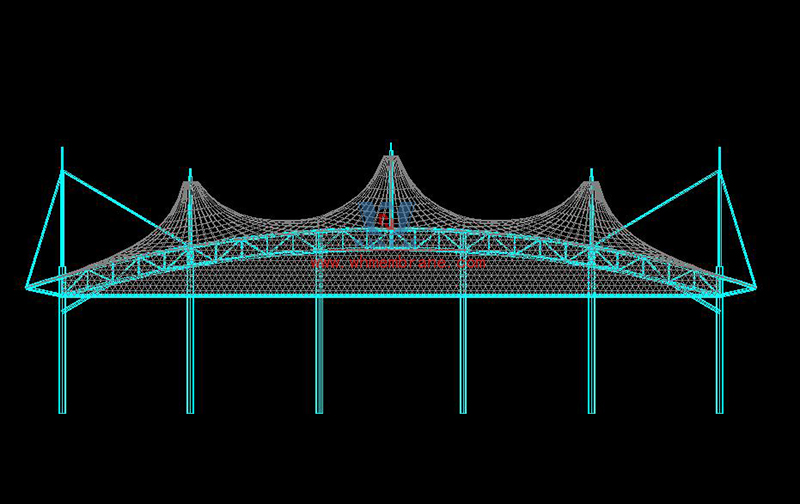

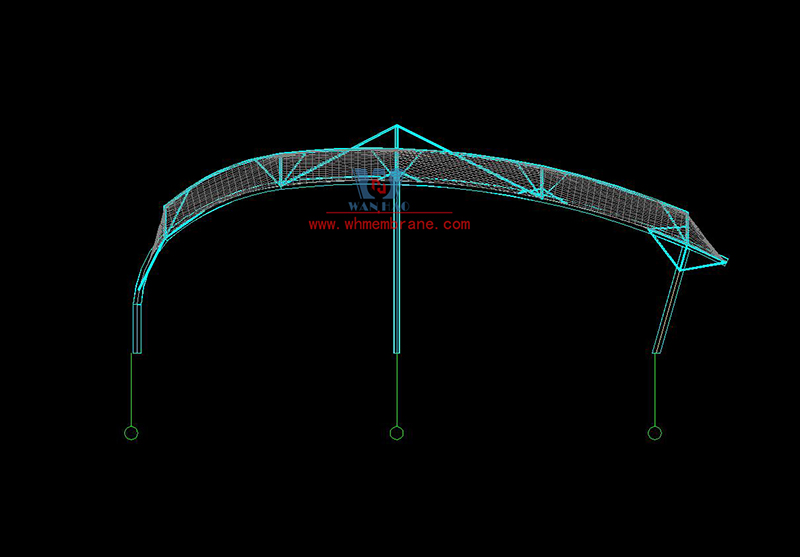

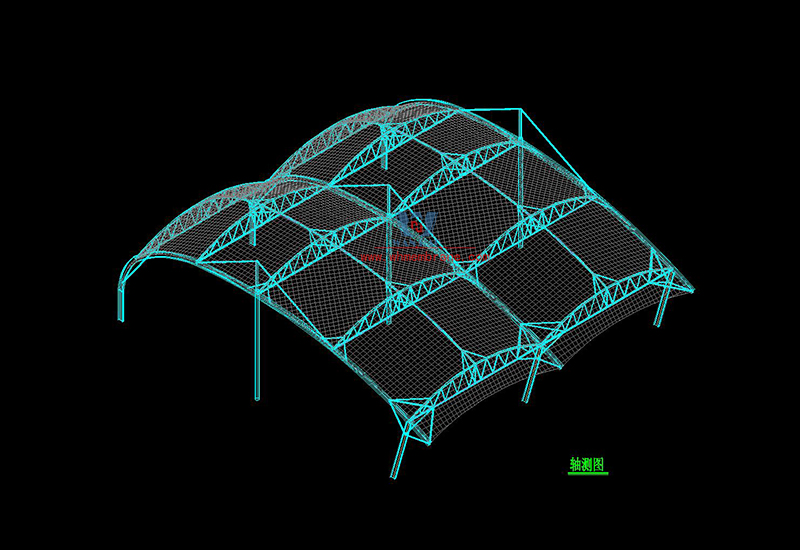

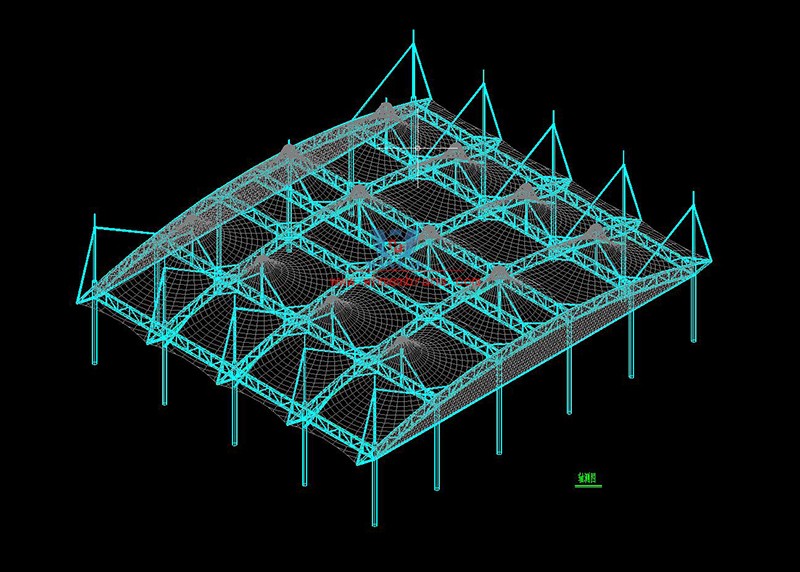

Wanhao 2023 Bid 6 - Wenzhou Huimin Road west green stadium steel film structure project

Congratulations on our winning the bid of Wenzhou Huimin Road west green field steel film structure project, the total amount of steel used in this project is about 310 tons, PTFE film structure spread area is about 7760 square meters. This is Wanhao 2023 the sixth bid, Wanhao will continue to make great efforts to create a brilliant.

With the wide application of membrane structure, membrane structure of the course is gradually loved and sought after by everyone, membrane structure has a variety of advantages, used in the course construction can well show its own various advantages.

1. Artistic

The course adopts the form of membrane structure, which can give full play to the architect's imagination and reflect the beauty of clear stress of structural components. As a kind of flexible material, its architectural modeling changes, is not comparable to other materials, so it also creates the changeable characteristics of membrane structure, fully reflects the building shape shaping force and light, elegant dynamic curve appearance.

2. Economy

Because the membrane material has a certain transmittance, during the day can reduce the intensity of lighting and time, can save energy well, at the same time, the gorgeous landscape formed by the transmission of color lights at night can also achieve good viewing effect.

3. Large span

The stadium membrane structure can fundamentally overcome the difficulties encountered by the traditional structure in the realization of long-span (unsupported) buildings, and can create a huge unobstructed visual space, effectively increasing the use area of space.

4. Self-cleaning

The surface of the membrane structure has a coating. The coating is to prevent the influence of dust and rain and protect the service life of the membrane structure, which can make the service life of the membrane structure more long.

5. Short construction period

Most of the processing and production of the stadium membrane structure construction project are completed in the factory, which can reduce the site construction time and avoid construction crossover, and the construction period is shorter than that of traditional construction projects.

6, light transmission and heat radiation resistance

The semi-transparency of the membrane material forms a distinct effect from the opaque effect of the concrete or steel top, the latter makes the active area dim, alternating between light and dark areas will produce uncomfortable contrast between light and dark. The semi-transparency of the membrane material brings great comfort to the vision, and its light transmittance is from 10%-21%, thus improving the free daylight lighting and saving the daytime light energy. The light passing through the membrane is perfectly scattered, reproducing the true colors of the space beneath it. The high reflectance of the membrane material (about 75%) avoids a lot of heat radiation, reduces the heat transfer, and its shading coefficient is about 0.12.

7. Lightness of structure

The basic components of the tensioned membrane structure system are supporting column, tensioned cable and membrane material. The cable exerts tension stress on the membrane at the periphery to form the stress state of hyperbolic paraboloid. The diaphragm has the dual function of structural stress and building roof partition of indoor and outdoor environment. The tensioned membrane structure itself is light, only 1/8 of the steel structure and 1/40 of the concrete structure. The membrane structure has a good adaptability to seismic force and wind acting in the horizontal direction, and the structure itself has a mechanism of absorbing seismic force and wind.

Hot summer day

Are you going to sweat it out on the field?

It rains continuously.

Might you stop wanting to go to the court again and again?

Membrane structure pitch shed

Can withstand the wind and rain for you!

Looking forward to the early completion and opening of the project,

To the general public to provide a good place to exercise!
