PTFE Roofing for Yunzhiyi Gymnasium Hangzhou Asian Games

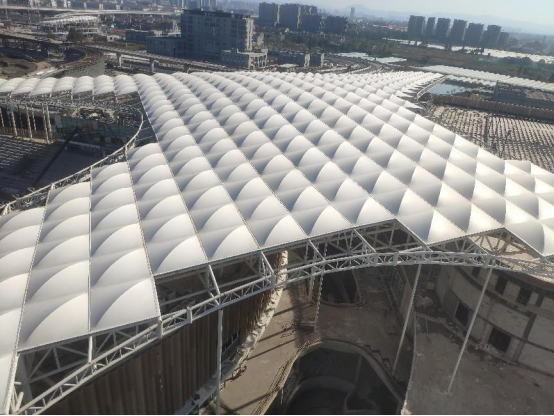

PTFE membrane is a lightweight, flexible, and weather resistant new building material with high self-cleaning, durability, and excellent optical properties. The PTFE roof project of the baseball arena adopts PTFE membrane with titanium dioxide coating, with a total area of 21000 square meters. The design inspiration comes from the regional characteristics of Shaoxing water towns, with each membrane unit slightly raised in the middle, resembling ripples created by a gentle breeze blowing on the water surface from afar, symbolizing the agility and softness of Jiangnan water towns.

The optical properties of PTFE film have brought many advantages to the venue. Its light transmittance is 13%, which can gently introduce natural light into the interior of the venue, reducing the need for daytime lighting. At the same time, its thermal energy reflectivity is as high as 73%, which can effectively prevent the fading of interior decoration materials and reduce the operating costs of the venue. PTFE roofs also perform well in rainwater management and shading. Through simulation calculations of rainwater and sunlight, the roof was designed to be high in the middle and low in the periphery, achieving optimal drainage and shading effects.

The construction difficulty of PTFE roofing project is extremely high, especially its irregular double curved surface shape and large-scale membrane structure installation. To ensure construction accuracy, the project team adopted model reconstruction technology based on 3D scanning, achieving precise cutting of top membrane materials and lower ceiling aluminum plates.

The PTFE roof project of the baseball arena at the Hangzhou Asian Games is a perfect combination oftechnology and aesthetics. It not only adds luster to the Asian Games, but also provides new ideas and examples for future sports architecture design. This project demonstrates China's innovative capabilities in the field of construction technology and its firm commitment to sustainable development
