I TOWER- Ballerina Skirt Lift installation phase perfect end!

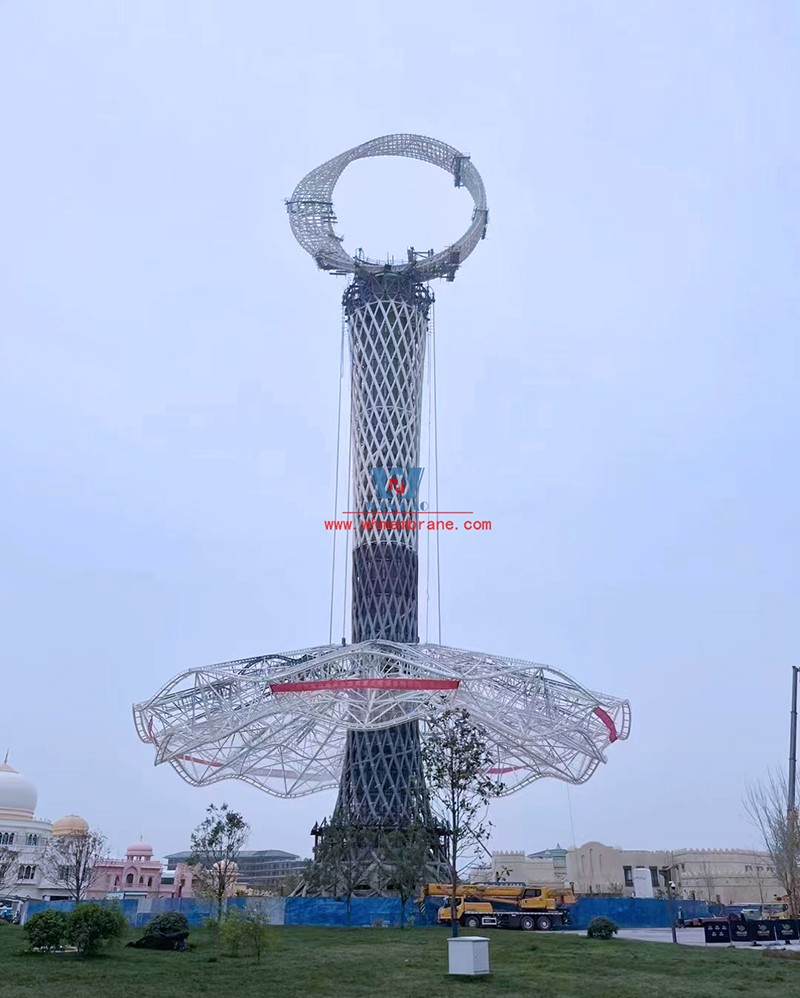

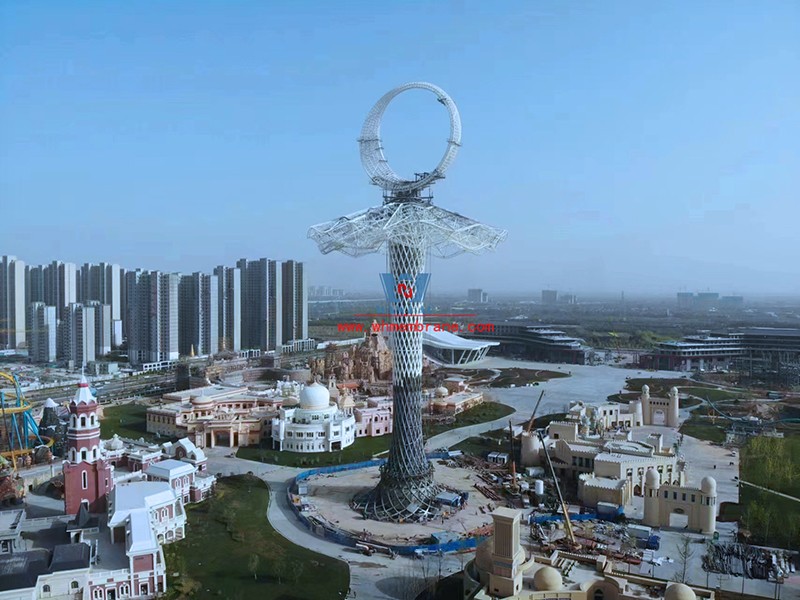

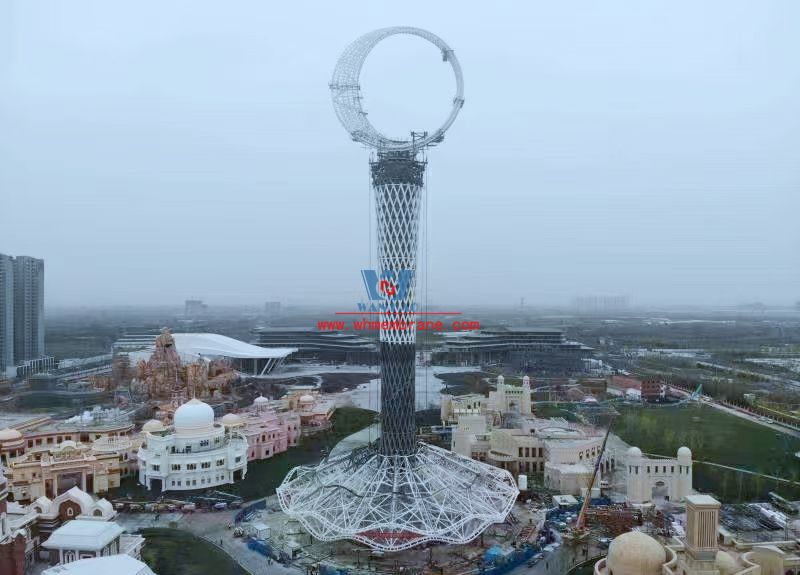

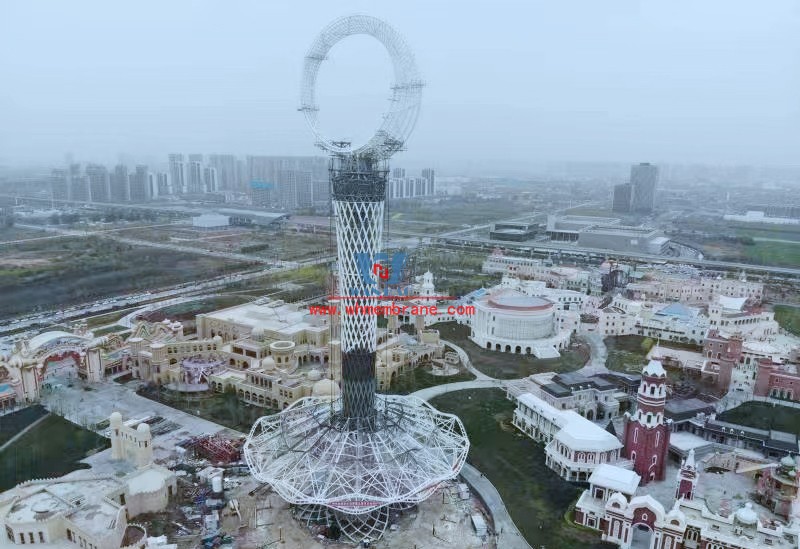

Recently, as a landmark building of the happy world of Silk Road, the skirt parts of I TOWER have been lifted and installed. Looking from a distance, the main effect of the whole project has been basically shown!

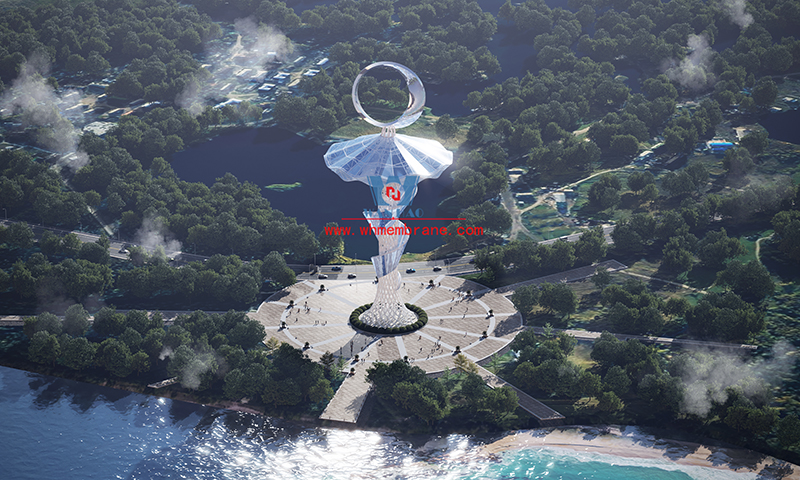

Xi 'an Silk Road Tower ETFE cable membrane structure project is located in Fengxi New City, Xixian New District, Qindu District, Xianyang City, Shaanxi Province. The project tower 139.21 meters high, covers an area of 1017.88 square meters, membrane structure spread area of 15,000 square meters. The Silk Road Tower is unique in shape and creative, just like a ballet dancer dancing in the wind. Its overall structure consists of four parts: tower body, Mobius ring, skirt and streamer.

First, the important construction stage

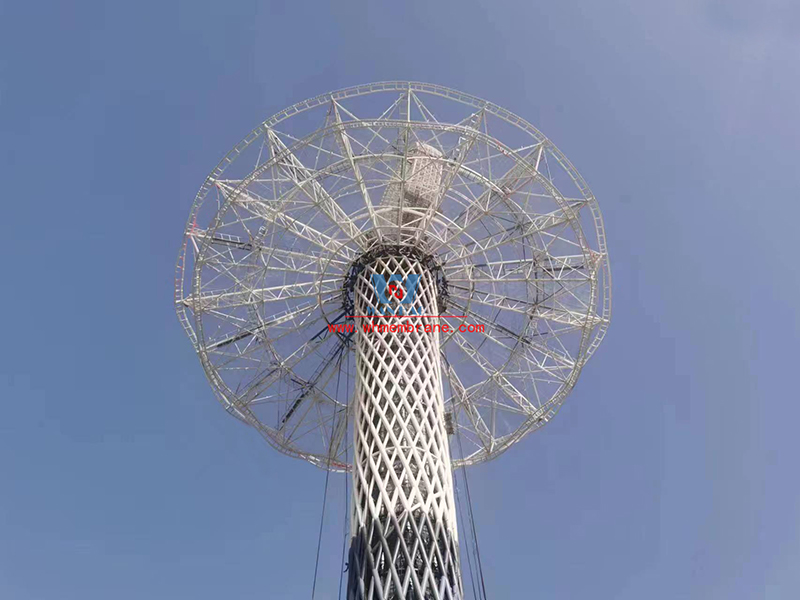

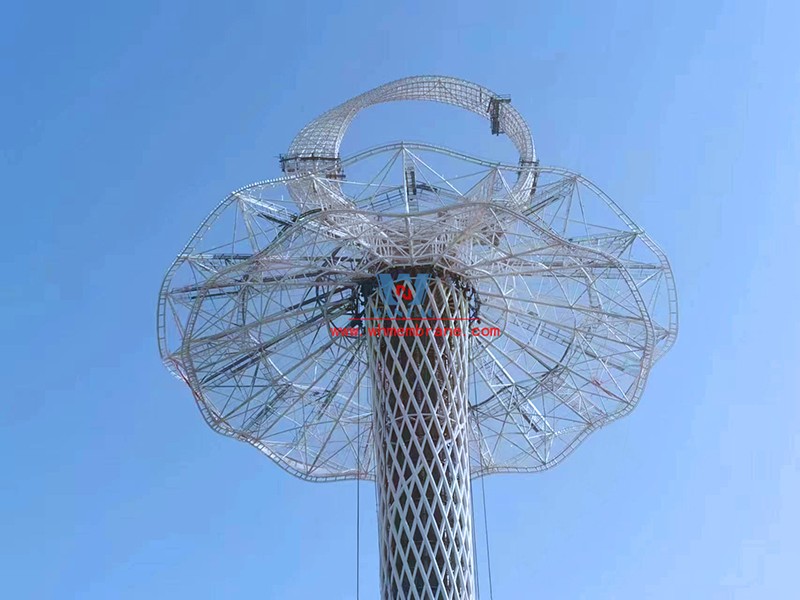

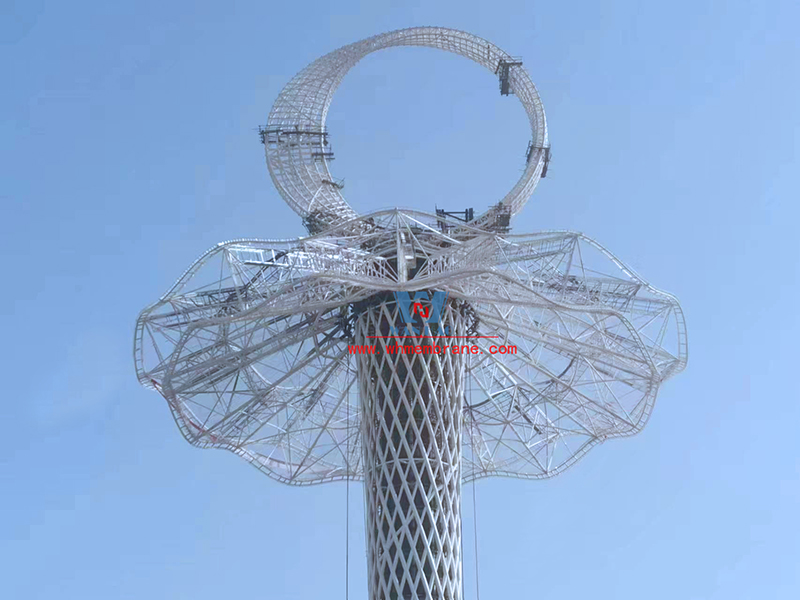

The overall structure of I TOWER consists of four parts: tower body, Mobius ring, skirt and streamer. The skirt is arranged in plane truss radially with a diameter of 64.5 meters. The outer end of the truss is connected by curved and rhythmic ring beams. The upper and lower surfaces are matched with blue and white ETFE membrane structure, which is light and elegant. As an important part of the whole project, the skirt is also the soul, so the lifting and installation of the skirt is also regarded as an important construction stage of the whole project.

Ii. Overcoming important technologies

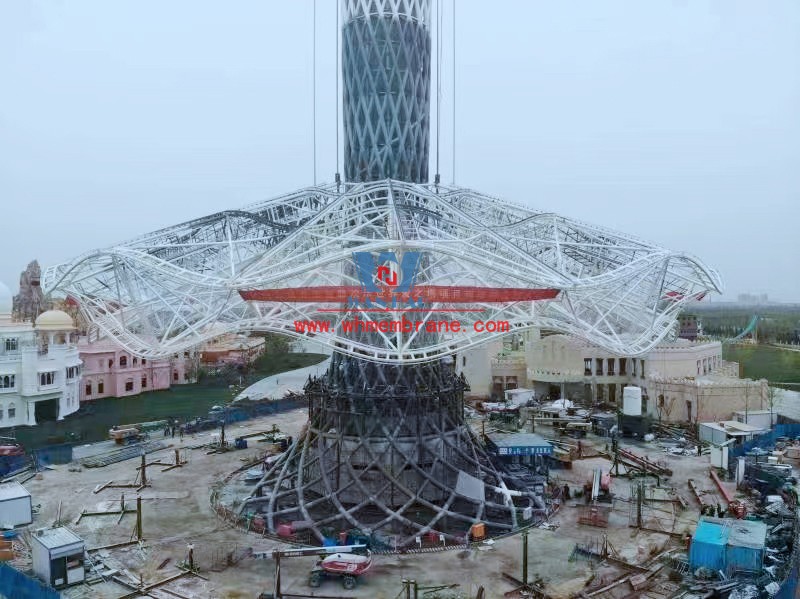

As a landmark building, I TOWER is as high as 139.21 meters. It is difficult to install the skirt and requires high precision. First, because the tower is high, the early assembly and welding of the skirt are carried out on the ground, so the precision requirement is a key difficulty; Second, after the welding, to choose the lifting point to lift, because the skirt is a cantilever structure, when lifting the need to pay attention to the selection of lifting points, and to ensure the synchronization of the points of lifting, there can be no error; Third, the tower is high, to overcome the influence of wind on the pull; Fourthly, part of the membrane structure trial installation is completed, because the wind influence is larger, the installation of the membrane is also a major challenge. Wanhao engineering team with years of construction experience, all the way to overcome the difficulties, skirt lifting installation is completed successfully, but also to Wanhao construction group to improve the technical ability.

Iii. Major progress nodes

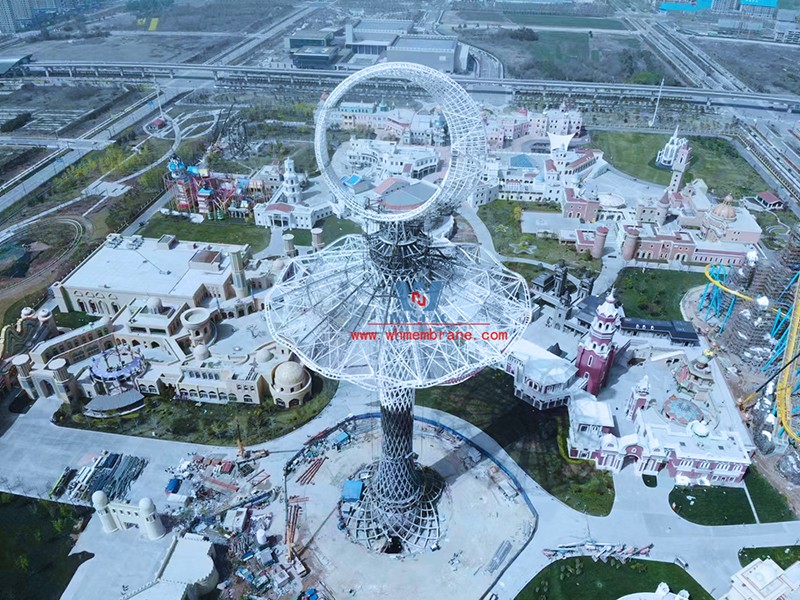

The lifting and installation of the skirt is a major project progress node of I TOWER. Now the skirt has been lifted and installed, and the trial installation of the ETFE film has also been completed. Later, the formal installation of the cable membrane structure and the installation of the spiral space shaped ribbon has begun, indicating that the installation of the project has begun to enter the final stage, and the Happy World of Silk Road will also be a miracle.

Project introduction

Culture is the soul of tourism, tourism is the carrier of culture, promote the integration of culture and tourism, tourism with new vitality. In recent years, many local cultural and tourism organizations have devoted themselves to exploring local cultural and tourism resources, seeking regional characteristics and giving full play to regional advantages, thus laying a solid foundation for promoting local economic development and carrying forward traditional culture. In 2023, everything will be renewed, and the domestic tourism industry is enjoying a full recovery. The development of cultural tourism has also entered a new stage. Seizing opportunities and meeting challenges, "Feng River Travel Belt" is officially launched in Xixian New District, Xi 'an, Shaanxi Province, and the key project, Silk Road Joy World, will be officially opened on April 28. As the landmark building of the park, I TOWER integrates architecture and art through membrane structure. By virtue of its gentle characteristics, it endows designers with the freedom of non-linear design and architects with the freedom of artistic expression, showing the extraordinary ability of structural designers. At the same time, it also gives full play to the advantages of light weight, artistic modeling and lightness and flexibility of the cable membrane structure, presenting a ballet dancer in a graceful dance perfectly to the public.

Simplicity comes from hidden precision

Extreme curved surface, produce a different dynamic

The wavy hemline creates a new beauty

Let your eyes, not be left or right by the height

Let your aesthetics not be bound by tradition

Membrane structure, the best choice to enjoy the garden

A seemingly ordinary membrane structure

It's so designed!
